Knife Edge Clamps

Low Profile Cam Action Clamps

Key Features

  • Low Profile for Good Clearance
  • Cam Action for Fasr Clamping
  • Knife-Edge for biting into Component

Description

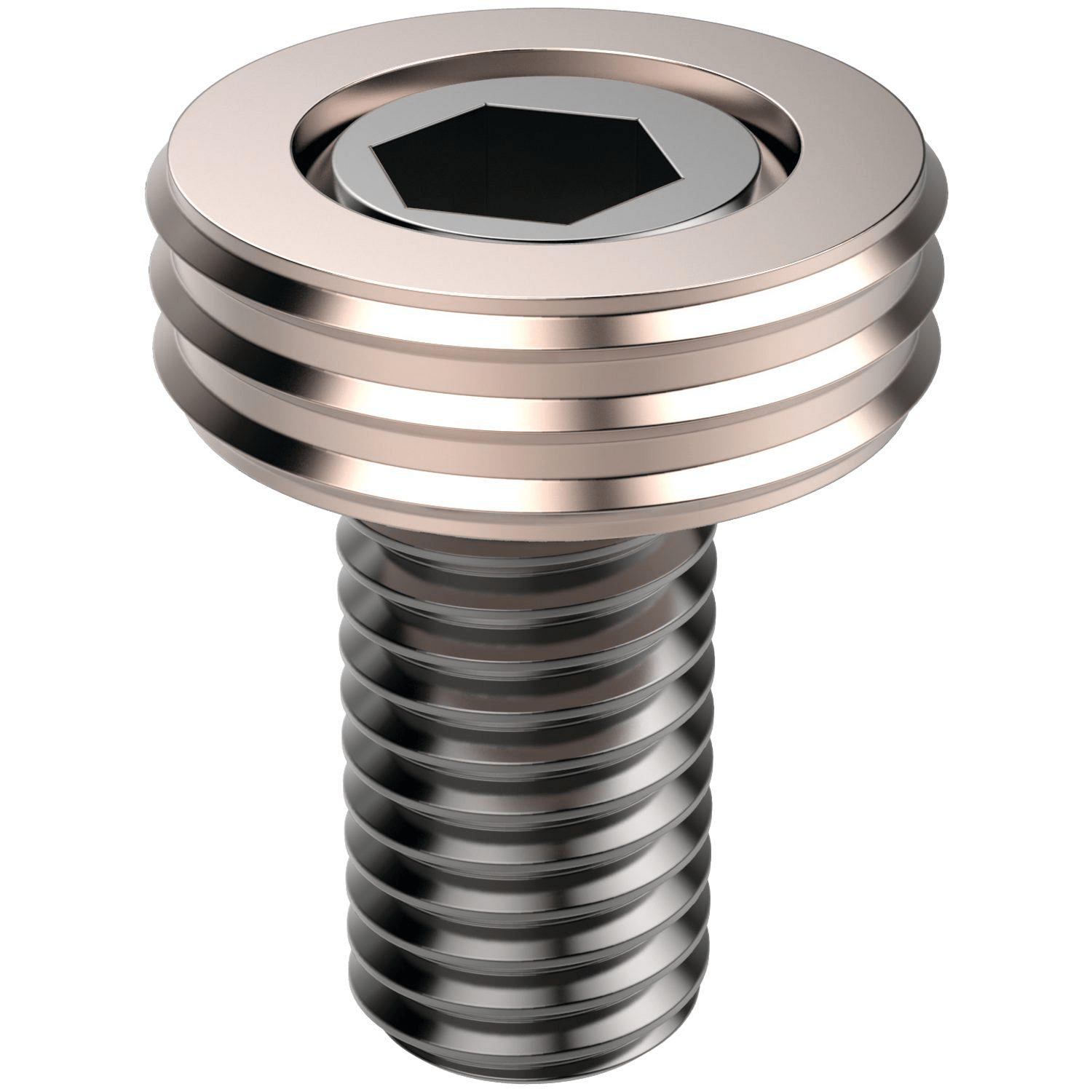

A great alternative for the Original Fixture Clamps when clamping rough material or more holding force is required. Low profile they offer good tool clearance and the cam actuation allows for easy, simple clamping. Made of just two components; a hardened steel screw with an offset head and a 12L14 Steel washer with a nickle coating..

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Type Height (mm) Clamp Force (N/lbs) Bolt Clamps per Pack Price
1 82584 Metric 6.35 8900 M10 8 £116.78
1 82588 Metric 9.52 17800 M12 8 £107.33
1 82592 Metric 12.7 26700 M16 4 £72.12
1 22584 Imperial 0.25 2000 3/8-16 8 £ Price on application n/a
1 22588B Imperial 0.375 4000 1/2-13 8 £ Price on application n/a
1 22592 Imperial 0.5 6000 5/8-11 4 £ Price on application n/a
