Low Profile Clamping Parts

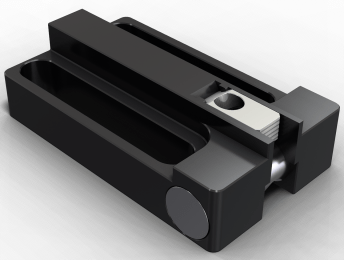

Slotted Free Vise to suit 40mm or 50mm Grid
Key Features
- Family of Parts for Flexible Clamping Solution
- Easily Adjustable for different size components
- Ground Surfaces for location
- Serrated for more holding force
Description
This family of clamping parts allow for quick easy standard set-up for large components. This low profile version allows for more tool clearance and less excess material.
Recommended Parts
CP32 Block Stop
CP37 Positioning Edge Supportd
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Height of Unit (mm) | Height of Backstop (mm) | Width of Jaw (mm) | Mount slot width (mm) | Slot pitch (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CP31-1240 | 37 | 30 | 15 | 13 | 40 | £239.99 | ||
| 1 | CP31-1250 | 37 | 30 | 15 | 13 | 50 | £248.04 | ||
| 1 | CP31-1650 | 37 | 30 | 15 | 16.5 | 50 | £248.04 |
