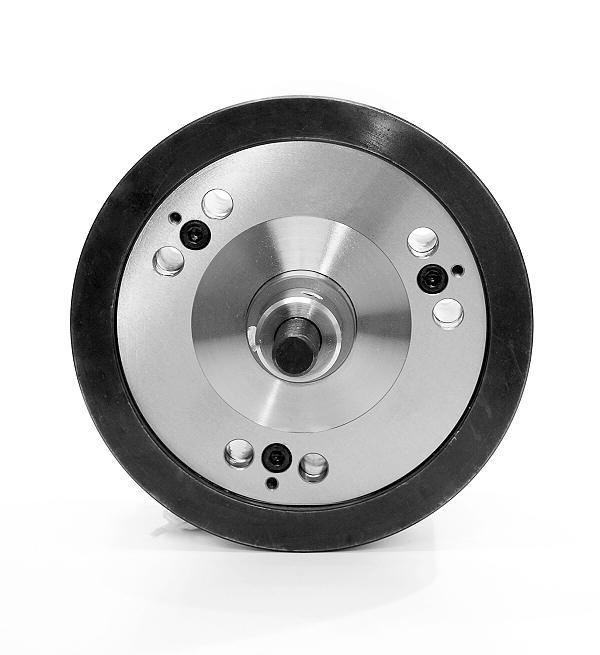

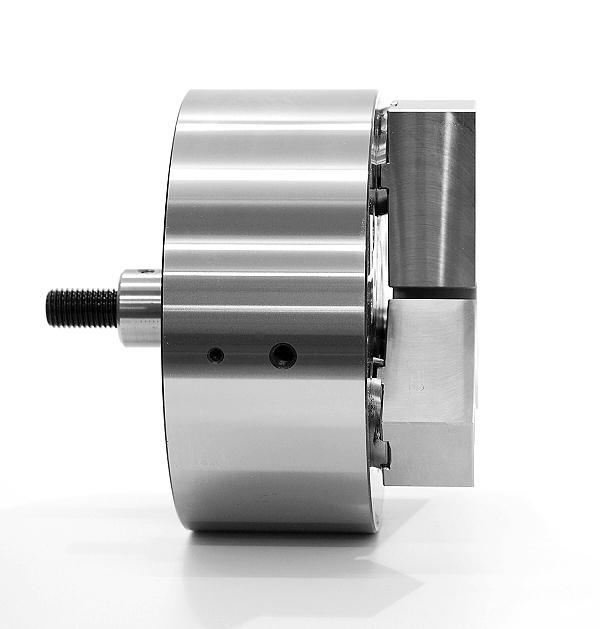

LU..A Series (With Adaptor)
Pull Back Level Lock Power Chuck with Adaptor Plate
Key Features
- Economical pull back chuck
- Long jaw stroke
- Stable gripping accuracy
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa PU series are an economic pull lock chucks for external gripping for heavy cut machining, while giving excellent accuracy and repeatability.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | LU06A5 | 7.2 | 25.2 | 3500 | £2,752.00 | ||
| 1 | LU08A6 | 7.2 | 45 | 3000 | £2,836.00 | ||
| 1 | LU10A6 | 10.8 | 60 | 2500 | £3,645.00 | ||
| 1 | LU10A8 | 10.8 | 60 | 2500 | £3,645.00 | ||
| 1 | LU12A6 | 10.8 | 75 | 2000 | £5,686.00 | ||
| 1 | LU12A8 | 10.8 | 75 | 2000 | £5,686.00 |
