Machinable Fixture Plate
Base Plate to suit VMC
Key Features
- Machinable to accept required hole pattern
- Ground Flat and Parallel
- Locating Holes for easy Set-Up
Description

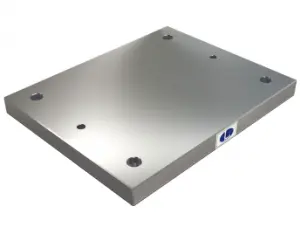

Cast iron plain fixture plate with mounting holes. Plain to allow for the machining of hole patterns and features required for specific fixtures. Ground flat parallel and perpendicular for accuracy. Two dowel holes allow for precise loading and setting up of the fixture plate.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP01-50400-0600 | 400 | 600 | 50 | £1,391.84 | |||
| 2 | BP01-50500-0600 | 500 | 600 | 5 | £1,558.67 | |||
| 3 | BP01-50600-0600 | 600 | 600 | 50 | £1,849.17 | |||
| 4 | BP01-50400-0800 | 400 | 800 | 50 | £1,678.84 | |||
| 5 | BP01-50450-0900 | 450 | 900 | 50 | £2,033.50 | |||
| 6 | BP01-50500-1000 | 500 | 1000 | 50 | £2,377.67 | |||
| 7 | BP01-50600-1200 | 500 | 1200 | 50 | £3,575.84 |
