Multi-Lok Spares

To Suit 1540 and 1550

Description

Spare parts for the 150mm Chick Multi-Lok range including the 1540 and 1550

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Number Unit to Suit Part Description Price
1 027-0600 1 1030/1040 Hoist Ring £ Price on application n/a
1 RNDP-375-RD1-025 2 1030/1040 Round Plugs £47.00
1 SHCS-M05-030-012 3 1030/1040 Top Hub Mounting Screws £ Price on application n/a
1 5MLEH24 4 1030/1040 Top Hub £ Price on application n/a
1 RNDP-020-RD1-025 5 1030/1040 Round Plugs £68.00

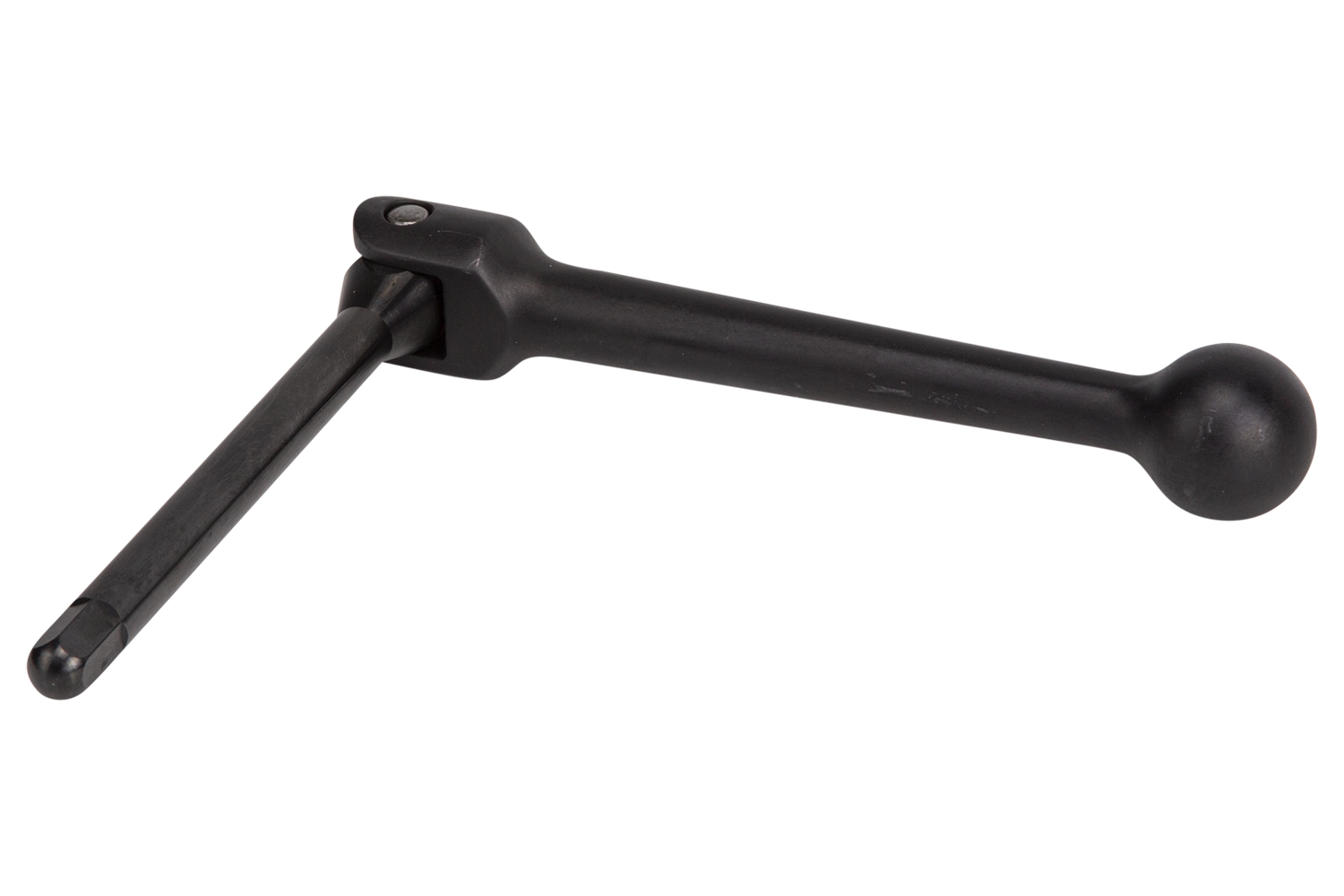

1 5SWH15 6 1540/1550 Swivel Handle £211.00
1 HDSP-150-RD1-001 7 1540/1550 Red Handle Seal Plug £30.00
1 HDSP-150-WH1-001 7 1540/1550 White Handle Seal Plug £30.00
1 5HDG15 8 1540/1550 Handle Guide £76.00
1 5SAS1540 9 1540 Slide Assembly £ Price on application n/a
1 5SAS1550 9 1550 Slide Assembly £1,595.00
1 RRSP-150-RD1-001 10 1540/1550 Rear Seal Plug £30.00
1 SHCS-M05-008-012 11 1540/1550 Locating Pin £28.00
1 5LBL-11-002 12 1540/1550 Label £ Price on application n/a
1 5CLM1540-41 13 1540 1540 Column £ Price on application n/a
1 5CLM1550-41 13 1550 1550 Column £6,337.00
1 5EJB15 14 1540/1550 Ejector Bushing £49.00
1 5LCB15 15 1540/1550 Locating Bushing £47.00
1 5CP1540-ST 16 1540 Standard Cover Plate £215.00
1 5CP1550-ST 16 1550 Standard Cover Plate £215.00
1 RNDP-018-RD1-025 17 1540/1550 Round Plugs £68.00
1 5DS1540-15-50 18 1540 QwikChange Dual Station Jaws £363.00
1 5DS1550-15-50 18 1550 QwikChange Dual Station Jaws £363.00
1 SHCS-M10-045-012 19 1540/1550 Fixed Jaw Mounting Screws £36.00
1 MTWR15 21 1540/1550 T-Wrench £44.00
1 005-2401 22 1030/1040 Screwdriver £28.00
1 MPP50 23 1030/1040 Pallet Plug £211.00
1 MCP40 24 1030/1040 Column Pilot £ Price on application n/a
1 SHCS-M06-070-012 25 1030/1040 Pallet Plug Moutning Screws £ Price on application n/a
1 SHCS-M06-016-012 26 1030/1040 Column Pilot Mounting Screws £ Price on application n/a
