OK-VISE RM Multi-Rail
Stops to suit RM Rail
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Clamp single large or multiple small workpieces
Description

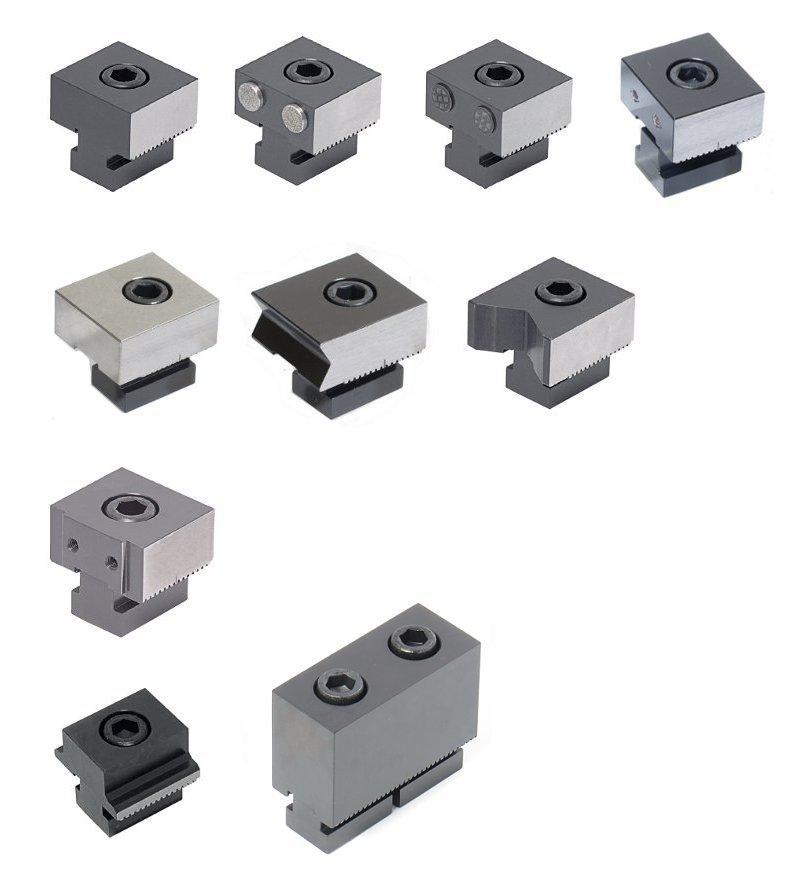

Workstops to suit OK-Vise Multi-Rail. Multi-Rail can accommodate OK-Vise clamps, stops, parallels and other accessories to clamp multiple components and maximise your milling work area. All the clamping and location elements on the rail can be positioned according to the size and shape of the workpieces to swiftly adapt from clamping multiple small workpieces to clamping single large workpieces. These stops are available in a range of styles and applications.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Length (mm) | Width (mm) | Height (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | RMS-R | Standard Serrated | 40 | 44 | 21.4 | £211.68 | ||
| 1 | RMS-SR | Smooth/Serrated | 40 | 44 | 21.4 | £160.69 | ||
| 1 | RMS-R2 | Nitrate Coated Serration | 40 | 44 | 21.4 | £168.76 | ||
| 1 | RMS-SR2 | £ Price on application | n/a | |||||
| 1 | RMS-S | £109.53 | ||||||
| 1 | RMS-S2 | Narrow Smooth | 40 | 29 | 21.4 | £158.80 | ||
| 1 | RMS-S3 | Tall Smooth | 80 | 44 | 51.4 | £177.34 | ||
| 1 | RMS-D | Diamond Coated Serration | 44 | 44 | 21.4 | £221.46 | ||
| 1 | RMS-DS | Smooth/Diamond Coated Serration | 42 | 44 | 21.4 | £165.84 | ||
| 1 | RMS-T | Additional Piece | 40 | 44 | 21.4 | £131.51 | ||
| 1 | RMS-TS | Additional Piece/Smooth | 40 | 44 | 21.4 | £121.55 | ||
| 1 | RMS-TR | Additional Piece/Serrated | 42 | 44 | 21.4 | £170.65 | ||
| 1 | RMS-G4 | Knife Edge | 40 | 44 | 21.4 | £ Price on application | n/a | |
| 1 | RMS-G4S | Knife Edge/Smooth | 40 | 44 | 21.4 | £182.67 | ||
| 1 | RMS-M | Machinable | 60 | 44 | 21.4 | £121.89 | ||
| 1 | RMS-MS | Machinable/Smooth | 50 | 44 | 21.4 | £114.00 | ||
| 1 | RMS-G | Grip Pins | 42 | 44 | 21.4 | £212.54 | ||
| 1 | RMS-GS | Grip Pins/Smooth | 41 | 44 | 21.4 | £169.10 | ||
| 1 | RMS-H | Horizontal V | 40 | 44 | 21.4 | £166.36 | ||
| 1 | RMS-HS | Horizontal V/Smooth | 40 | 44 | 21.4 | £137.86 | ||
| 1 | RMS-V | Vertical V | 60 | 44 | 21.4 | £166.36 | ||
| 1 | RMS-VS | Vertical V/Smooth | 50 | 44 | 21.4 | £135.97 | ||
| 1 | RMS-R64 | Wide Nitrate Serration | 40 | 64 | 21.4 | £ Price on application | n/a |
