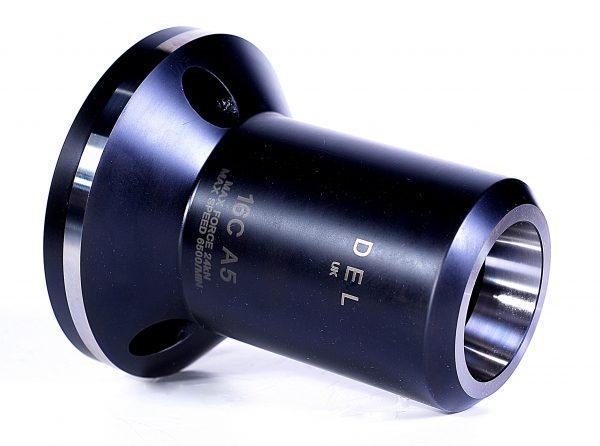

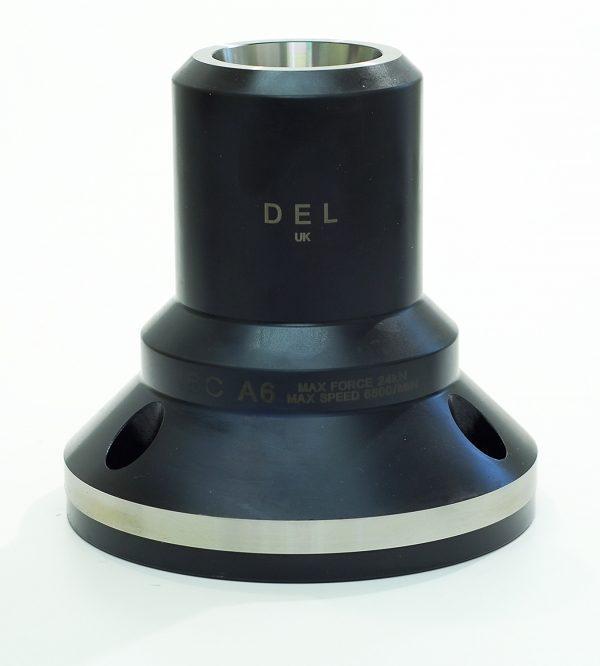

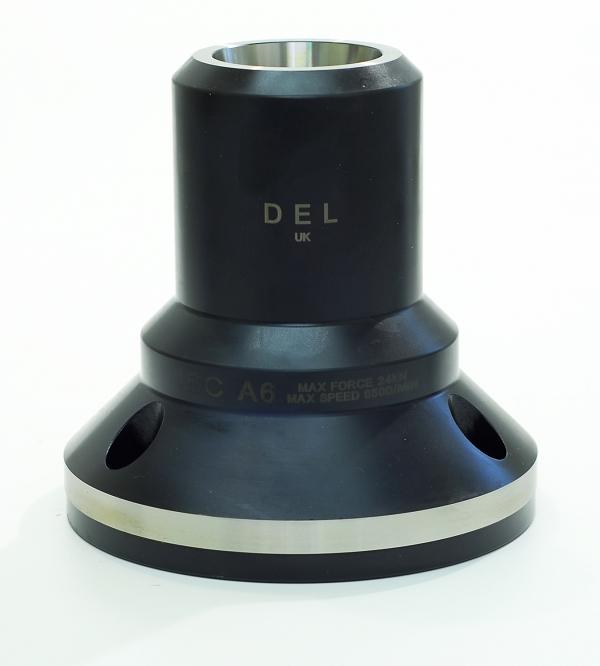

Pullback Collet Chuck

For use with 16C Collets

Key Features

  • Small nose diameter to provide excellent tool clearance.
  • Case hardened, optimising the rigidity, strength and durability.


The gripping pull-back action to actuate the collet chuck means the work piece will be moved slightly in the Z-Axis. This is normally acceptable for first operation work and the work piece position can easily be determined with a facing cut. The 5C and 16C collets have been designed with a long small nose diameter allowing for good clearance for tooling. All collet closers are case hardened and ground optimising the rigidity, strength and durability.

Estimated delivery: Next Day (subject to availability)


# Part No Spindle Mount Capacity (mm) Length (mm) Nose Diameter Price
1 DEL16C 170mm 42 157 85 £894.00
1 DEL16CA5 A2-5 42 152 85 £832.00
1 DEL16CA6 A2-6 42 160 85 £832.00
