RM Multi-Rail Fixture Set
To Suit Large Workpieces
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Can accommodate large workpieces
Description

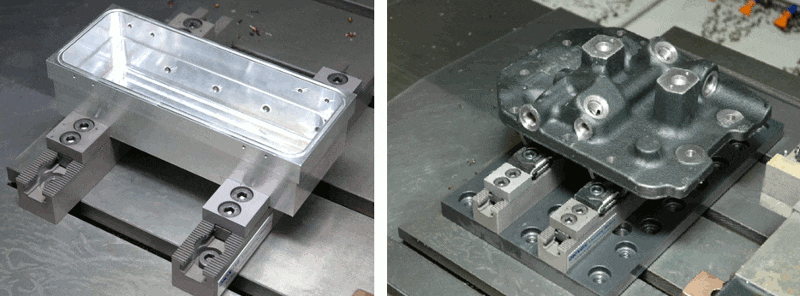

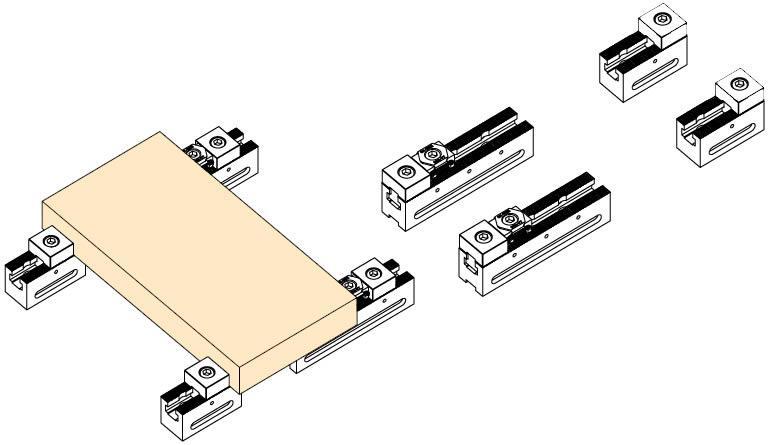

Multi-Rail can accommodate OK-Vise clamps, stops, parallels and other accessories to clamp multiple components and maximise your milling work area. All the clamping and location elements on the rail can be positioned according to the size and shape of the workpieces to swiftly adapt from clamping multiple small workpieces to clamping single large workpieces. This set includes 2 split rails, 2 clamps and 4 stops and can accomodate large workpieces.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Description | No. Parts in this Package | Price | ||
|---|---|---|---|---|---|---|
| 1 | SRM-4C4GD1 | Fixturing Package to suit 2 components | 1 | £ Price on application | n/a | |
| 1 | RM-100 | Multi Rail Base 100mm | 2 | £269.02 | ||
| 1 | RM-200 | Multi Rail Base 200mm | 2 | £353.14 | ||
| 1 | RMS-S | Smooth Stop Module | 4 | £109.53 |
