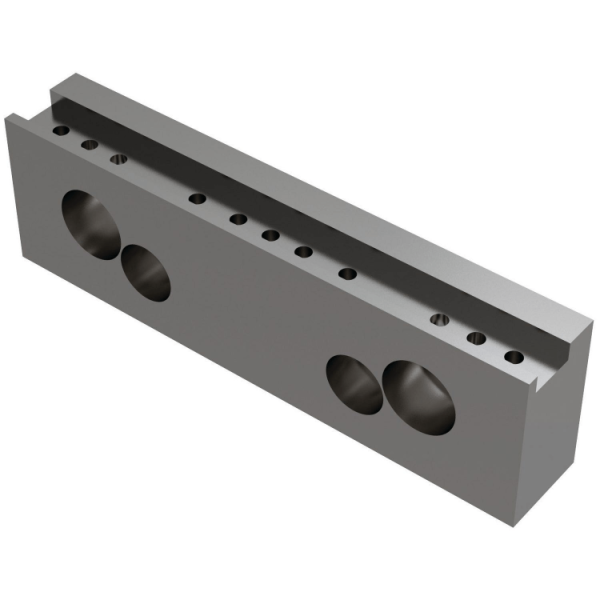

TalonGrip Vice Jaws

Vice Jaws with Grippers

Key Features

  • Aggressive machining operations while clamping on as little as 1.5mm
  • Ideal for difficult applications or proto-type work
  • Minimise waste stock
  • Jaws left un-hardened for custom modifications

Description

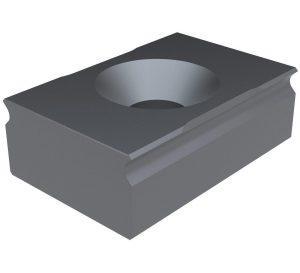

Increase the functionality of your standard 100mm, 150mm and 200mm vices. TalonGrip is a simple bolt on system that will allow you to perform aggressive machining operations while clamping on as little as 1.5mm. Ideal for small lot sizes, difficult applications or proto-type work. For more versatility, all Jaw Sets are tapped with 2 additional holes to accept Pitbull clamps when downforce or additional holding force is necessary. Jaws are available in drilled, slotted or undrilled versions and are not heat-treated to allow for custom modifications. TalonGrips are also available individually for fixturing with Pitbull and Dyna-Force clamps or for soft jaw applications. All grips and stops are heat-treated A2 steel (jaw sets include 4 TalonGrips, 1 stop and M5 screws).

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Type Width (mm) Height (mm) Thicknes (mm) Hole pitch (mm) Hole height (mm) Price
1 32044 WITH HOLES 100 37.59 25.4 63.5 17.47 £177.21
1 32066 WITH HOLES 150 43.94 25.4 63.5/98.55 17.47/23.87 £200.83
1 32068 WITH HOLES 200 43.94 25.4 98.55 23.87 £224.46
1 32088 WITH HOLES 200 62.23 31.75 98.3/120.65 23.88/30.94 £295.33
1 33044 WITHOUT HOLES 100 37.59 25.4 N/A N/A £177.21
1 33066 WITHOUT HOLES 150 43.94 25.4 N/A N/A £200.83
1 33068 WITHOUT HOLES 200 43.94 25.4 N/A N/A £224.46
