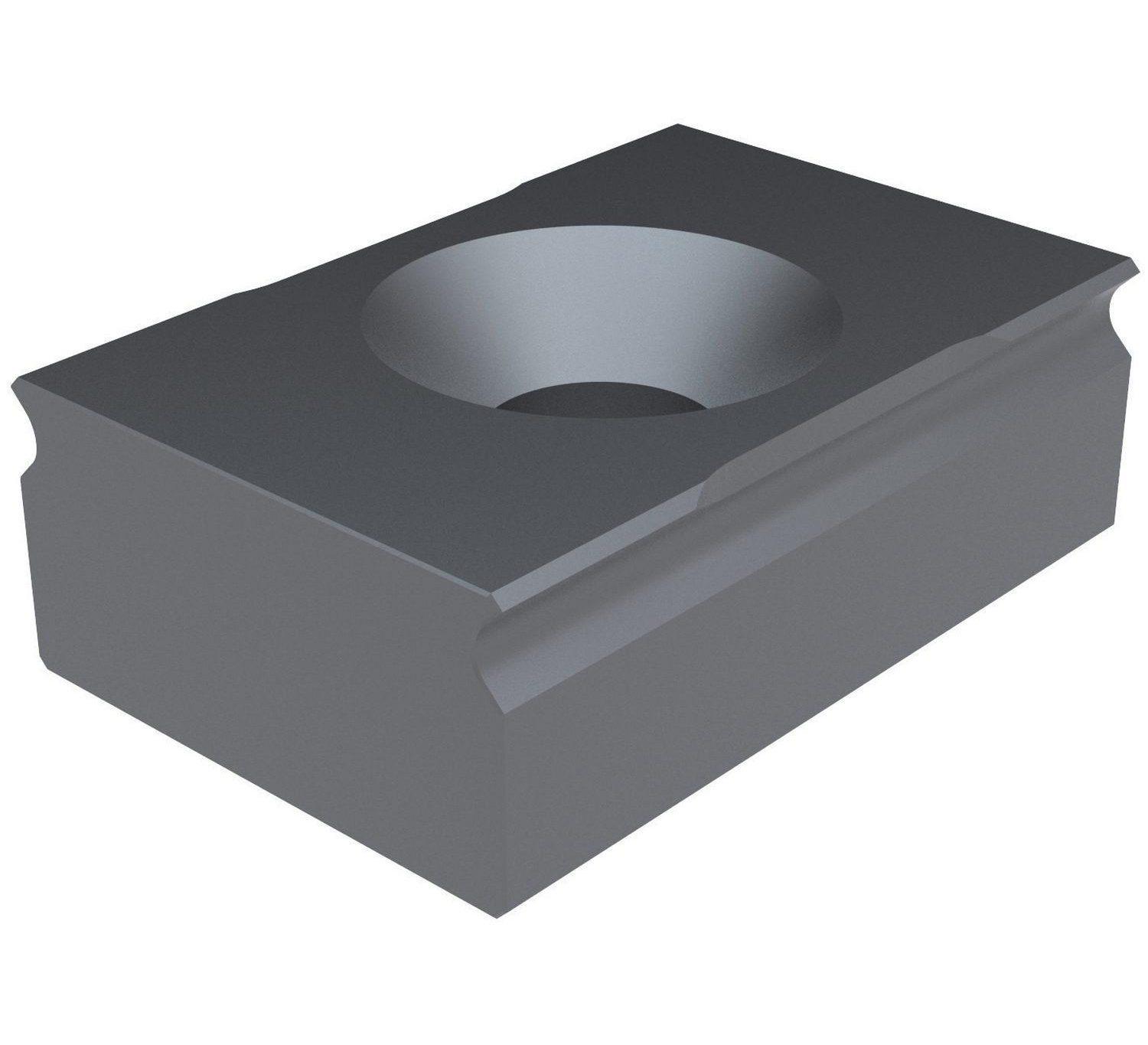

TalonGrip
Low Profile Grippers
Key Features
- Clamp on as little as 1.5mm
- Easy to integrate into fixtures and jaws
- Range of grippers and workstops available
- Heat-treated A2 steel
Description
TalonGrip is a simple bolt on system that will allow you to perform aggressive machining operations while clamping on as little as 1.5mm. TalonGrips are available individually for fixturing with Pitbull and Dyna-Force Clamps or for soft jaw applications as well as in our TalonGrip steel vice jaw kits. All grips and stops are heat-treated A2 steel.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Description | Width (mm/inch) | Mounting screw | Gripping Height | Qty Per Pack | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 33050 | Metric | Extra Grips | 12.7 | M5 | 1.5mm-1.9mm | 2 | £36.79 | ||
| 1 | 33020 | Metric | Extra Stop | 12.7 | M5 | – | 1 | £22.53 | ||
| 1 | 33030 | Metric | Extra Stop | 19.05 | M5 | – | 1 | £22.53 | ||
| 1 | 33075 | Metric | Fixture Grips | 19.05 | M5 | 1.5mm-3.0mm | 2 | £41.21 | ||
| 1 | 33100 | £45.49 | ||||||||
| 1 | 33150 | Metric | Fixture Grip | 25.4 | M8 | 1.5mm-5.6mm | 1 | £38.93 | ||
| 1 | 32050 | Imperial | Extra Grips | 0.5 | 10-32 | .060-.075 | 2 | £ Price on application | n/a | |
| 1 | 32020 | Imperial | Extra Stop | 0.5 | 10-32 | – | 1 | £ Price on application | n/a | |
| 1 | 32075 | Imperial | Fixture Grips | 0.75 | 10-32 | .060-.120 | 2 | £ Price on application | n/a | |
| 1 | 32100 | Imperial | Fixture Grips | 1 | 10-32 | .060-.120 | 2 | £ Price on application | n/a | |
| 1 | 32150 | Imperial | Fixture Grip | 1 | 5/16-18 | .060-.220 | 1 | £ Price on application | n/a |
