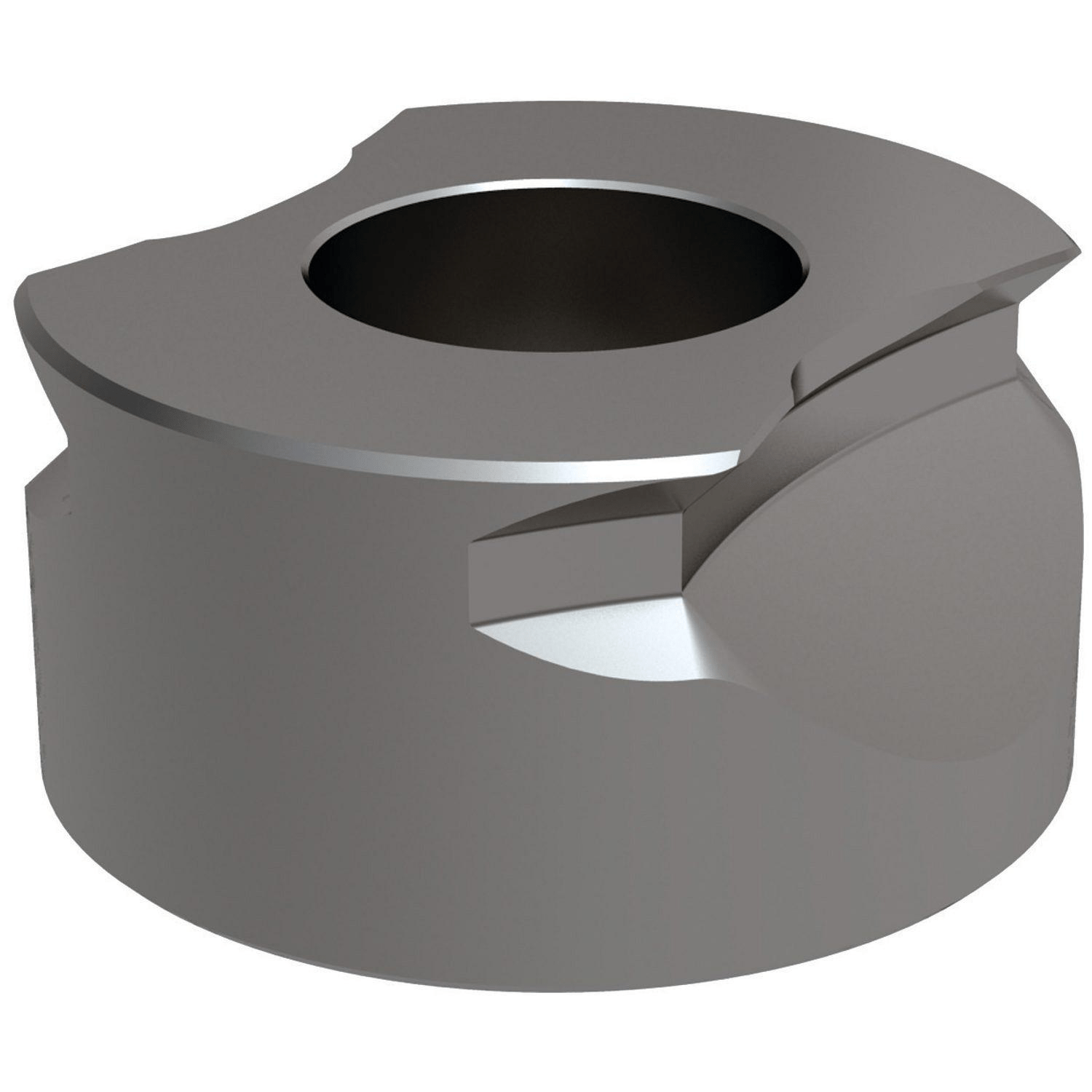

VersaGrip

Low Profile Grippers for Round Components

Key Features

  • Clamp on as little as 1.5mm
  • Easy to integrate into fixtures and jaws
  • Easily conform to round or complex profiles
  • Hardened to 51-53 RC

Description

VersaGrip is a simple bolt on system that will allow you to perform aggressive machining operations on irregular shaped components while clamping on as little as 1.5mm. VersaGrips are available individually for fixturing with Pitbull clamps or for soft jaw applications as well as in our VersaGrip steel vice jaw kits. Versagrips are hardened to 51-53 RC and have penetrating teeth to bite into the workpiece. They can be rotated to conform to round or complex profiles and are ideal for gripping flame cut parts, castings, even parts with a negative draft.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Type Diameter (mm/inch) Total height (mm/inch) Mounting screw Gripping Height (mm/inch) Qty Per Pack Price
1 32175 Metric 19.05 9.52 M5 1.5-3.5 2 £41.42
1 33175 Imperial 0.75 0.375 10-32 .060-.140 2 £ Price on application n/a
