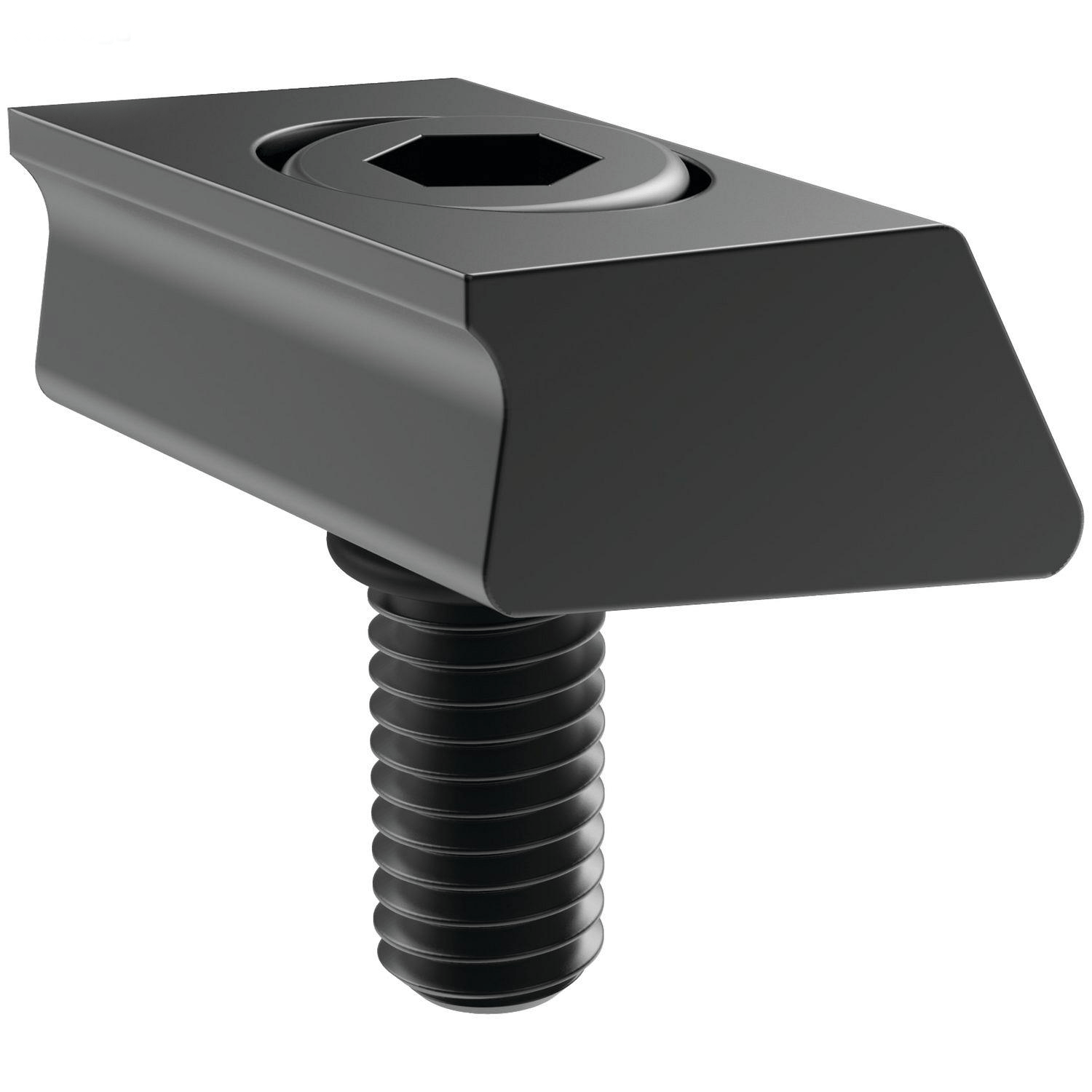

Machinable Pitbull Clamps
Low Profile Pulldown Clamp
Key Features
- Positive down force on minimal clamping height
- Simple, sturdy, high quality design and components
- Easy to design and build fixtures
- Machinable to clamp irregular work pieces
Description
The popular Pitbull® Fixture Clamp is now available in a machinable version. The clamp has positive down force and a very low gripping profile, reducing material cost and number of operations. The Machinable Pitbull® Clamp is made of A2 tool steel and heat treated to about 43RC for long life, yet still machinable. There is additional material on the clamping face to allow for machining a radius. A dowel pin is included in each package to locate clamp while machining radius.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Width (mm/inch) | Travel (mm/inch) | Screw | Clamp Force (N/lbs) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 56077 | Metric | 25.4 | 1.27 | M10 | 26000 | £126.88 | ||
| 1 | 56088 | Metric | 38.1 | 1.9 | M12 | 50000 | £111.06 | ||
| 1 | 26077 | Imperial | 1 | 0.05 | 3/8-16 | 6000 | £ Price on application | n/a | |
| 1 | 26088 | Imperial | 1.5 | 0.075 | 1/2-13 | 12000 | £ Price on application | n/a |
