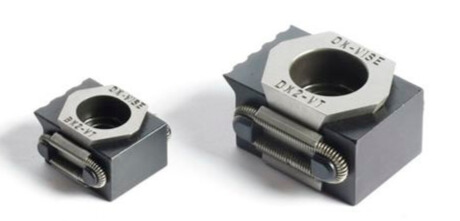

OK-VISE Combo Clamp

Knife Edge/Smooth Version

Key Features

  • Hardened Steel Pins for Biting into the Component
  • Range of Sizes
  • Other Combinations of Jaws Available
  • Hardened for Longevity

Description

This types of clamp is ideally suited to single component clamping. One side of this clamp is fitted with an aggressive serrated edge to achieve very high grip levels and the other side is smooth.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Width (mm) Height (mm) Optimum Length (mm) Grip Force (kN) Bolt Price
1 BK2-VT-SG 21 15 31.5 22 M8 x 20 £99.75
1 DK2-VT-SG 30 22 49.8 55 M12 x 30 £133.22
