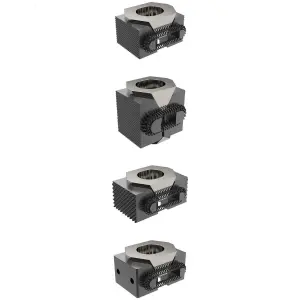

OK-VISE Smooth Clamp

Smooth Economy Version

Key Features

  • Smooth Jaws to avoid Marking of the Component
  • Range of Sizes
  • Lower Cost by only grinding the base
  • Hardened for Longevity

Description

OK-VISE economy models are used in regular workholding when ultraprecision is not required. They are made of the same raw materials as other models, and the bottom of the jaws is ground for precise positioning on the fixture base. The fixture's accuracy normally is assured by the precision of the positioning elements, not by the clamp itself. The clamp's job is to generate the force to hold the workpiece against the positioning elements. This type of clamp has smooth jaws.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Width (mm) Height (mm) Optimum Length (mm) Grip Force (kN) Bolt Price
1 AK2-VT-SO 15 11 23 10 M5 x 25 £24.93
1 BK2-VT-SO 21 15 30 15 M8 x 20 £39.86
