Sleeves to suit Klamp CS Mandrel

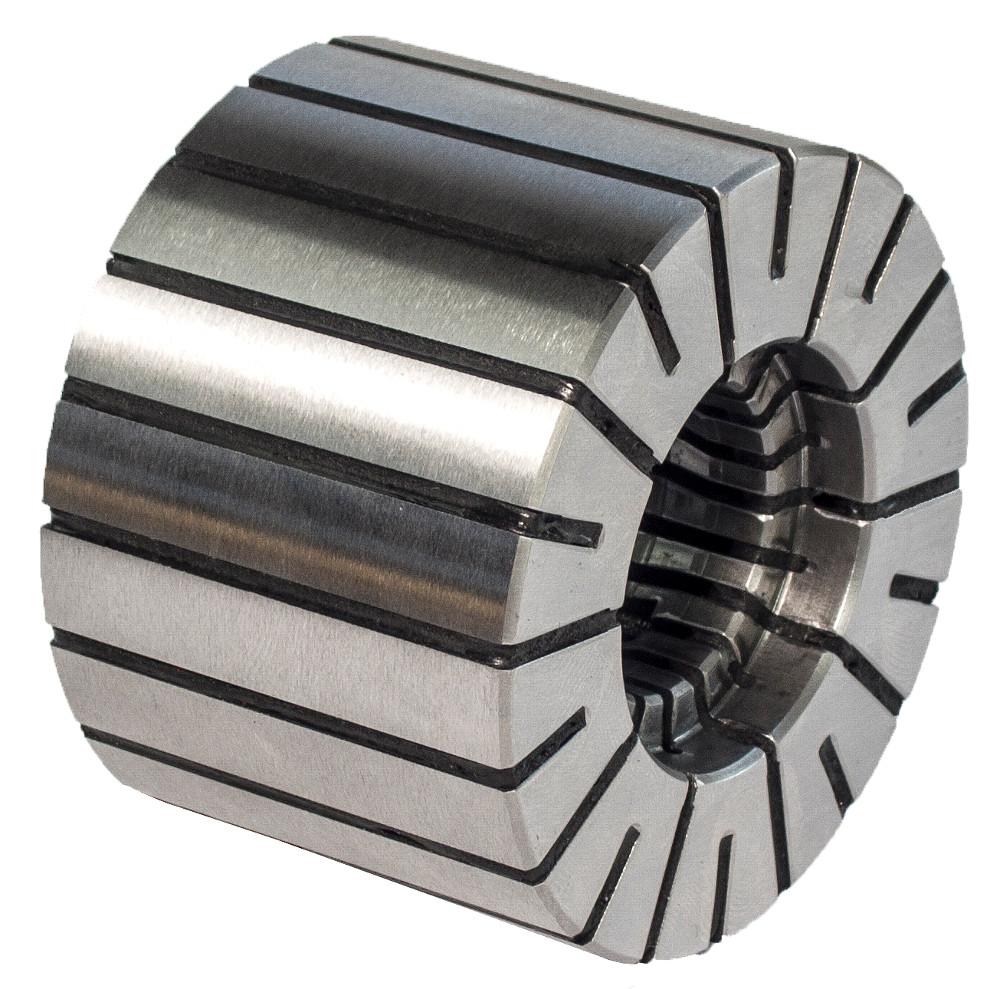

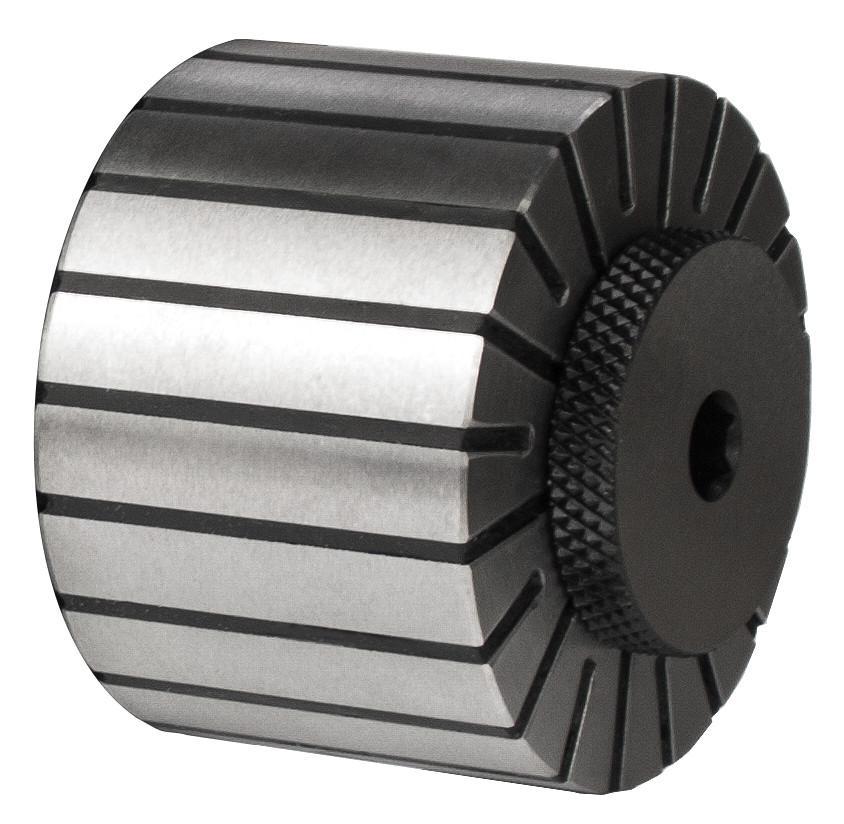

Full Length Standard and Flush Sleeves

Key Features

  • High Accuracy & Rigidity
  • Modular Design
  • Standard or flush sleeves available
  • Customised systems available

Description

Standard Sleeves for use with KEM-CS-xx Mandrels. 1/2 length sleeves & extended length sleeves available

Estimated delivery: 2-3 Weeks (subject to availability)

Dimensions

# Part No Gripping Range (mm) Standard or Flush Bonded or Non-Bonded Price
1 92.100.210.2200 21.90 - 22.70 Standard Bonded £324.87
1 92.100.210.2280 22.70 - 23.50 Standard Bonded £324.87
1 92.100.210.2360 23.50 - 24.30 Standard Bonded £324.87
1 92.100.210.2440 24.30 - 25.10 Standard Bonded £324.87
1 92.100.210.2520 25.10 - 25.90 Standard Bonded £324.87
1 92.100.210.2600 25.90 - 26.70 Standard Bonded £324.87
1 92.100.210.2680 26.70 - 27.50 Standard Bonded £324.87
1 92.100.210.2760 27.50 - 28.30 Standard Bonded £324.87
1 92.100.210.2840 28.30 - 29.10 Standard Bonded £324.87
1 92.101.210.2840 28.30 - 29.10 Flush Bonded £367.50
1 92.101.210.2920 29.10 - 29.90 Flush Bonded £367.50
1 92.101.210.3000 29.90 - 30.70 Flush Bonded £367.50
1 92.101.210.3080 30.70 - 31.50 Flush Bonded £367.50
1 92.101.210.3160 31.50 - 32.30 Flush Bonded £367.50
1 92.101.210.3240 32.30 - 33.10 Flush Bonded £367.50
1 92.101.210.3320 33.10 - 33.90 Flush Bonded £367.50
1 92.101.210.3400 33.90 - 34.70 Flush Bonded £367.50
1 92.101.210.3480 34.70 - 35.50 Flush Bonded £367.50
1 92.101.210.3560 35.50 - 36.30 Flush Bonded £367.50
1 92.101.210.3640 36.30 - 37.10 Flush Bonded £367.50
1 92.101.210.3720 37.10 - 37.90 Flush Bonded £367.50
1 92.101.210.3800 37.90 - 38.70 Flush Bonded £367.50
1 92.101.210.3880 38.70 - 39.50 Flush Bonded £367.50
1 92.101.210.3960 39.50 - 40.30 Flush Bonded £367.50
1 92.100.200.2200 21.90 - 22.70 Standard Non-Bonded £263.13
1 92.100.200.2280 22.70 - 23.50 Standard Non-Bonded £263.13
1 92.100.200.2360 23.50 - 24.30 Standard Non-Bonded £263.13
1 92.100.200.2440 24.30 - 25.10 Standard Non-Bonded £263.13
1 92.100.200.2520 25.10 - 25.90 Standard Non-Bonded £263.13
1 92.100.200.2600 25.90 - 26.70 Standard Non-Bonded £263.13
1 92.100.200.2680 26.70 - 27.50 Standard Non-Bonded £263.13
1 92.100.200.2760 27.50 - 28.30 Standard Non-Bonded £263.13
1 92.100.200.2840 28.30 - 29.10 Standard Non-Bonded £263.13
1 92.101.200.2840 28.30 - 29.10 Flush Non-Bonded £294.00
1 92.101.200.2920 29.10 - 29.90 Flush Non-Bonded £294.00
1 92.101.200.3000 29.90 - 30.70 Flush Non-Bonded £294.00
1 92.101.200.3080 30.70 - 31.50 Flush Non-Bonded £294.00
1 92.101.200.3160 31.50 - 32.30 Flush Non-Bonded £294.00
1 92.101.200.3240 32.30 - 33.10 Flush Non-Bonded £294.00
1 92.101.200.3320 33.10 - 33.90 Flush Non-Bonded £294.00
1 92.101.200.3400 33.90 - 34.70 Flush Non-Bonded £294.00
1 92.101.200.3480 34.70 - 35.50 Flush Non-Bonded £294.00
1 92.101.200.3560 35.50 - 36.30 Flush Non-Bonded £294.00
1 92.101.200.3640 36.30 - 37.10 Flush Non-Bonded £294.00
1 92.101.200.3720 37.10 - 37.90 Flush Non-Bonded £294.00
1 92.101.200.3800 37.90 - 38.70 Flush Non-Bonded £294.00
1 92.101.200.3880 38.70 - 39.50 Flush Non-Bonded £294.00
1 92.101.200.3960 39.50 - 40.30 Flush Non-Bonded £294.00
