Manual Expanding Mandrel
Klamp KEM Mandrels
Key Features
- No need to remove your 3 jaw or collet chuck
- Side actuated for thru or blind bores
- Use the same mandrels, sleeves and locators as the hydraulic systems
- A great option for low/medium-volume production.
Description

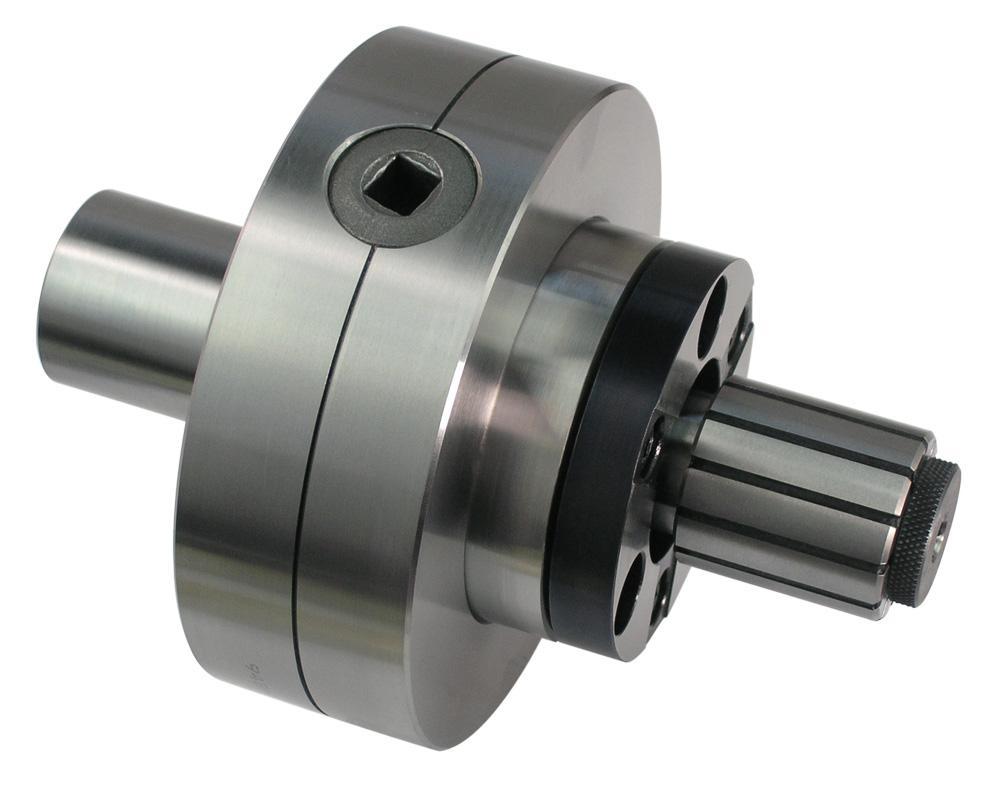

KEM Series includes a manually-operated expanding mandrel actuator incorporating a precision-ground 38mm diameter spigot for mounting in collet or jaw chucks. These models utilise the same precision mandrels, expanding sleeves and locators as our CNC Expanding Mandrels. They are side-actuated with an included square-drive key so that they can accommodate parts with blind bores as well as those with thru-holes. Precision-ground for high accuracy in squarenesss and concentricity, If higher accuracy is needed the mandrel can be clocked-in once the unit is gripped in a chuck.
Dimensions
| # | Part No | Grip Range Min | Grip Range Max | Sleeve Length | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | KEM-AS-MA | 12.4 | 22.4 | 22.1 | £3,836.00 | ||
| 1 | KEM-BS-MA | 15.9 | 29.1 | 27 | £3,892.00 | ||
| 1 | KEM-CS-MA | 21.9 | 40.3 | 32 | £3,909.00 | ||
| 1 | KEM-DS-MA | 28.3 | 51.5 | 38.1 | £4,016.00 | ||
| 1 | KEM-ES-MA | 41.1 | 82.7 | 43 | £4,278.00 |
