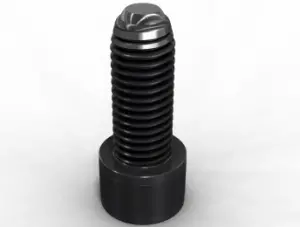

Swivel Clamping Screw

Serrated Flat End

Key Features

  • Ideal for clamping irregular shaped workpieces
  • Heat treated to HRC 62
  • Smooth and domed versions available

Description

Swivel clamping screw with serrated flat end. These screws are ideal for clamping irregular shaped workpieces. The screws are manufactured from SCM435(JIS) / 34CrMo4(DIN) heat treated to HRC 30 - 35 and the balls are manufactured from SCM21(JIS) / 34CrM04(DIN) heat treated to HRC 62. Smooth and domed versions are also available.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Thread Length (mm) Hex key (mm) Price
1 PT16C-0610 M 6 10.3 3 £7.93
1 PT16C-0615 M 6 13 3 £8.28
1 PT16C-0616 M 6 16.3 3 £8.40
1 PT16C-0620 M 6 20.3 3 £8.40
1 PT16C-0625 M 6 23 3 £8.40
1 PT16C-0812 M 8 11.2 4 £9.22
1 PT16C-0816 M 8 16.4 4 £9.33
1 PT16C-0820 M 8 19.2 4 £9.33
1 PT16C-0825 M 8 25.4 4 £9.33
1 PT16C-0830 M 8 29.2 4 £9.33
1 PT16C-1014 M10 14 5 £10.62
1 PT16C-1015 M10 15 5 £11.55
1 PT16C-1020 M10 20 5 £11.78
1 PT16C-1025 M10 25 5 £11.90
1 PT16C-1030 M10 30 5 £12.02
1 PT16C-1035 M10 35 5 £12.13
1 PT16C-1040 M10 40 5 £12.83
1 PT16C-1218 M12 17 6 £13.88
1 PT16C-1220 M12 22 6 £15.40
1 PT16C-1230 M12 30 6 £15.52
1 PT16C-1240 M12 40 6 £16.10
1 PT16C-1250 M12 50 6 £16.22
1 PT16C-1625 M16 24 8 £19.95
1 PT16C-1635 M16 34 8 £20.18
1 PT16C-1645 M16 44 8 £21.00
1 PT16C-1655 M16 54 8 £22.17
1 PT16C-1665 M16 64 8 £22.52
1 PT16C-2030 M20 30 10 £18.55
1 PT16C-2040 M20 40 10 £19.25
1 PT16C-2050 M20 50 10 £19.95
1 PT16C-2060 M20 60 10 £20.77
1 PT16C-2090 M20 90 10 £22.52
1 PT16C-2435 M24 35 12 £25.43
1 PT16C-2450 M24 50 12 £26.60
1 PT16C-2480 M24 80 12 £29.75
