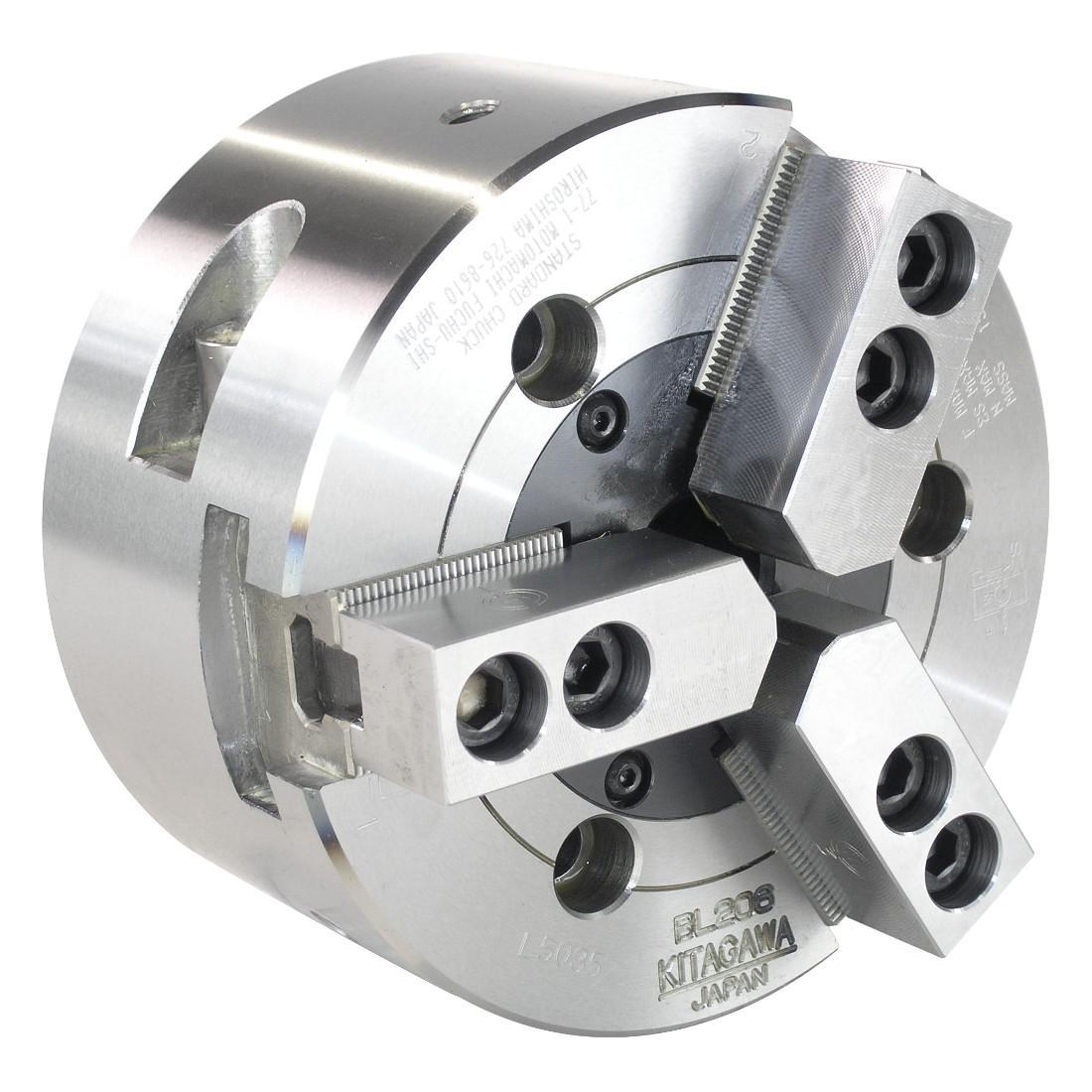

BL 200 Series with Adaptor
3 Jaw Long Stroke Power Chuck with Adaptor Plate
Key Features
- Lever style mechanism allows for increased jaw stroke
- Compatible with large, readily available, range of jaws
- Increased jaw stroke allow for flanged workpeices to be loaded past the jaws
- Standard Accessories Available
Description
The BL 200 Series with Adaptor chucks have been designed with a lever style mechanism. Rather than the standard wedge to allow for increased jaw stroke. The increased jaw stroke allows for larger diameters to pass by the jaws then holding on a smaller diameter. This works well for products with stepped diameters or large flanges. BL200 series chucks are supplied with a blank drawnut as standard. With a set of T-nuts and adaptor plate Kitagawa chucks are manufactured from high grade alloy steel.
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore | Jaw Stroke | Max Grip | Max Speed | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BL206A5 | A2-5 | 28 | 20 | 31.2 | 4500 |
|
£4,689.00 | ||
| 2 | BL208A6 | A2-6 | 45 | 25 | 49 | 3300 |
|
£5,203.00 | ||
| 3 | BL210A6 | A2-6 | 53 | 30 | 63 | 3000 |
|
£6,119.00 | ||
| 4 | BL210A8 | A2-8 | 53 | 30 | 63 | 3000 |
|
£6,119.00 | ||
| 5 | BL212A6 | A2-6 | 63 | 35 | 80.4 | 2200 |
|
£6,895.00 | ||
| 6 | BL212A8 | A2-8 | 63 | 35 | 80.4 | 2200 |
|
£6,895.00 |
